The Awning Legs Magnetic Holder – Offrotie – For all Van Awnings

Sale price€89,95 EUR
Sold out
5.0

Color: Satin Black

Product Description:

Upgrade your Vanlife experience with the Offrotie Magnetic Awning Legs Holder - the simplest and fastest way to set up your awning in minutes, wherever you are, whatever the terrain might be. This magnetic solution elevates your awning's versatility, securely keeping both legs in place without any tools needed. Its two 55kg rubberized permanent magnets attach firmly to your van or bus surface without causing any scratches. The sturdy level handle allows for easy mounting and removal of the magnets, thanks to its strategic angle. The handle has a built-in clamping lever, allowing you to tightening and loosening the leg to the magnet body without any additional tools. Made in Germany, this magnetic holder showcases innovation, convenience, and style. It is compatible with all awning brands that have an M8 sized foot hole. Say goodbye to unreliable pegs and suction cups, and enjoy the peace of mind that comes with using magnets.



Details about the product:
Material:

Handle: Die-cast zinc

Screw: Stainless Steel

Magnet: NdFeB with nickel coat and rubber coat

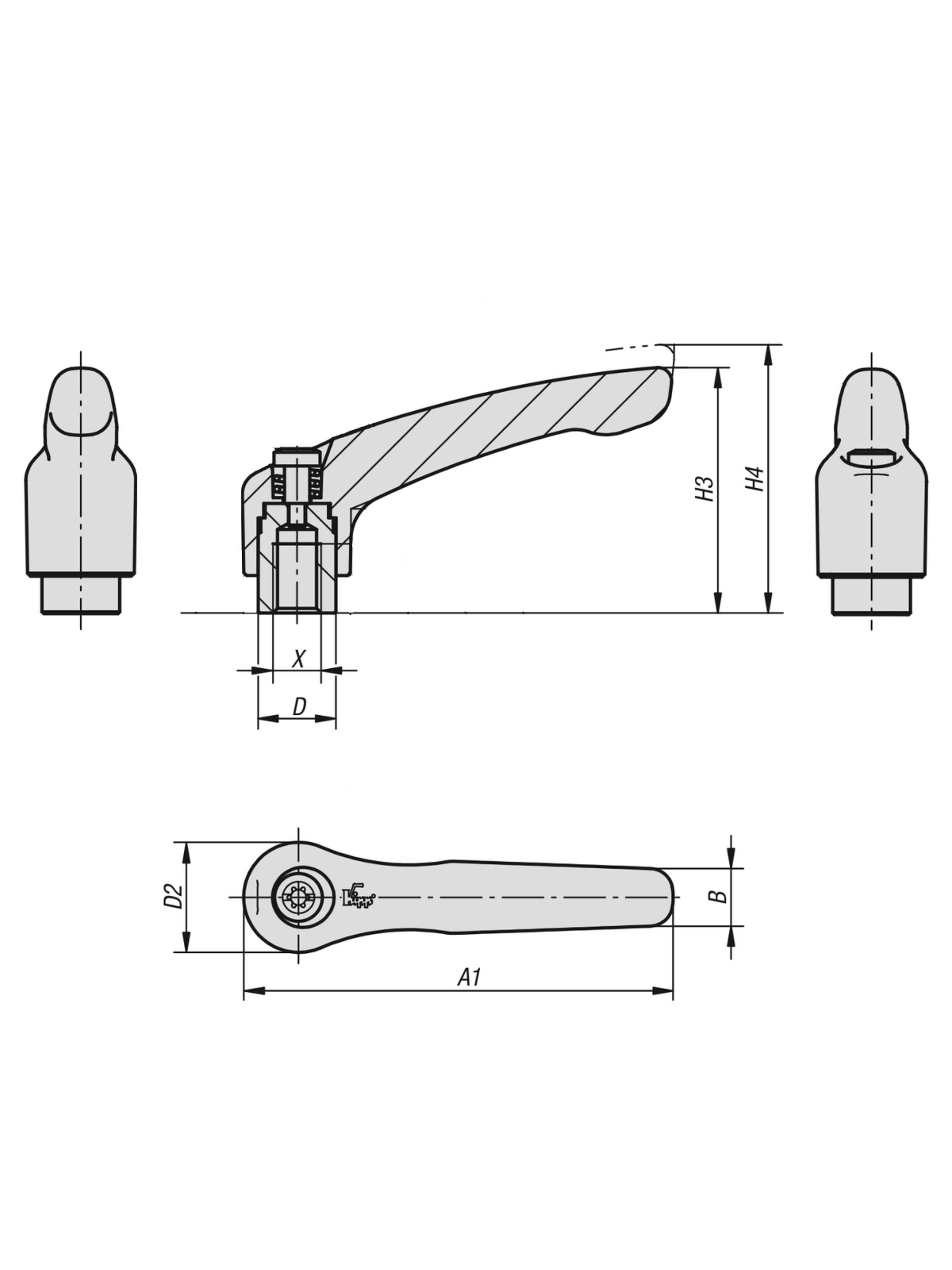

Handle Length (A1):  74.5 mm
Handle Width (D2): 19 mm
Handle Width (B): 9.5 mm
Handle Height (H3): 42.5 mm
Handle Height Clamp extended (H4): 45.5 mm
Screw Internal Thread (X): M8
Screw Width (D):  13.5 mm
Magnet diameter:  Ø 88 mm
Magnet Height: 8.5 mm
Magnet Screw Thread: M8
Total Weight (Holder pair): 580 g

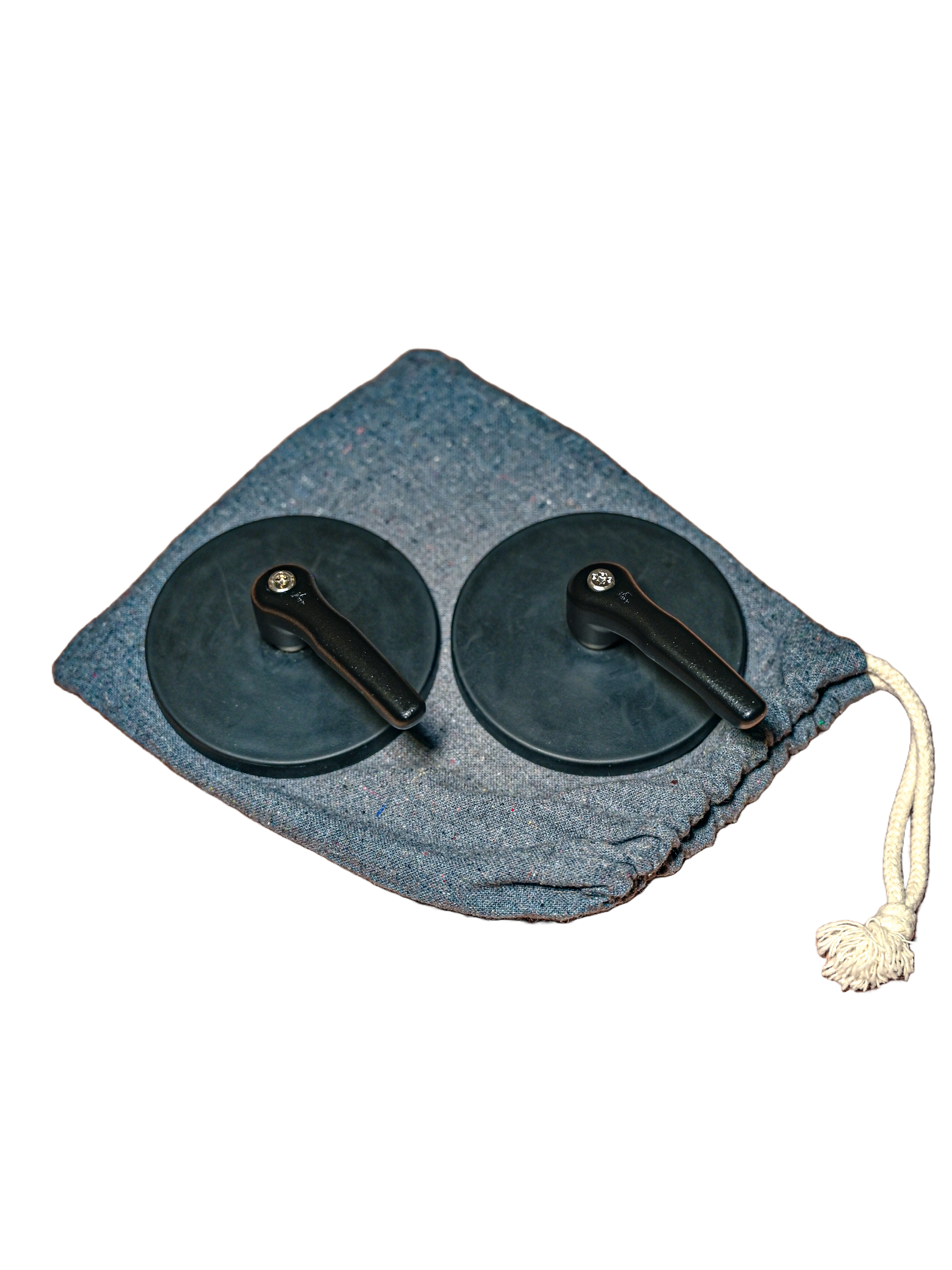

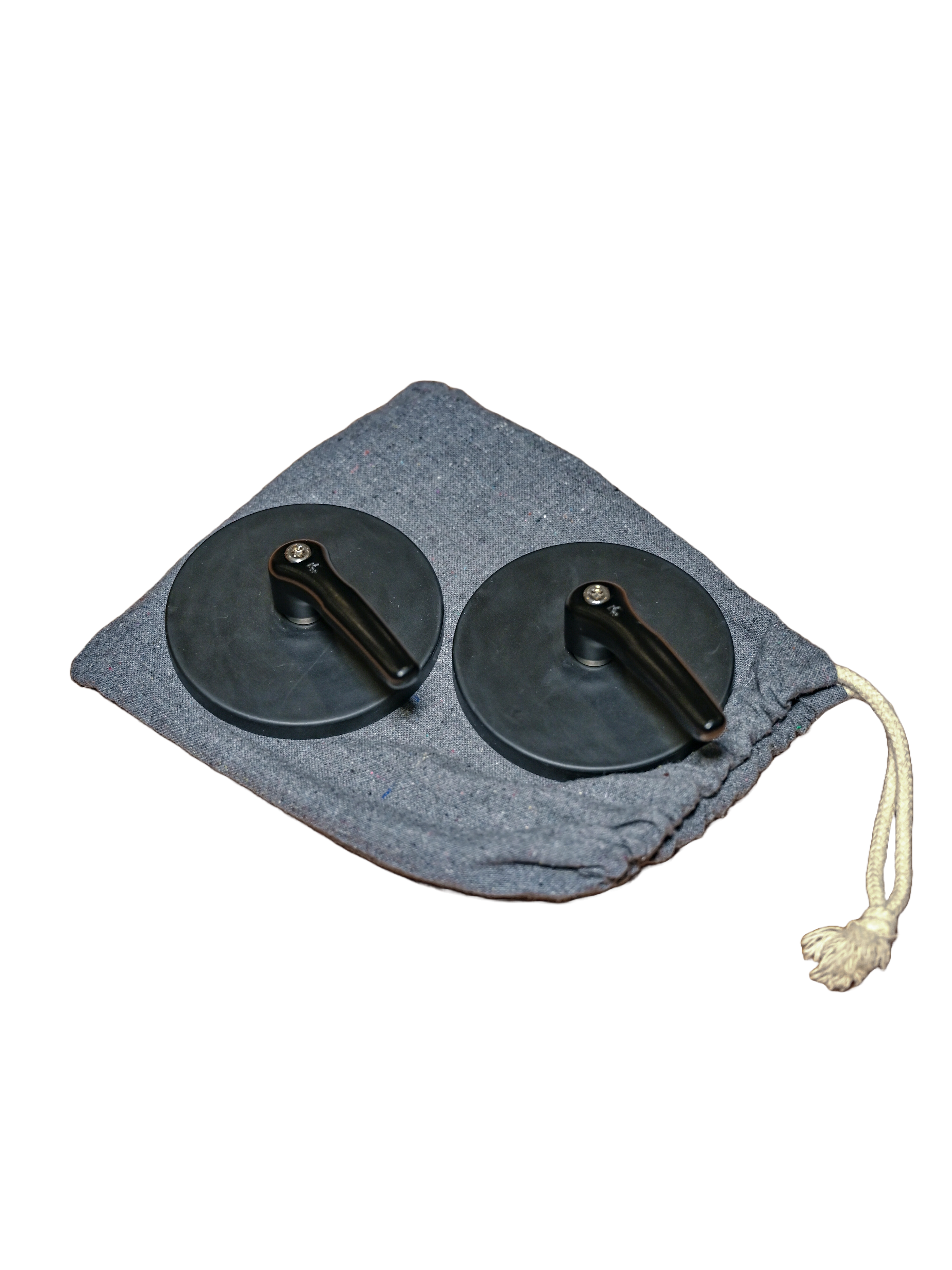

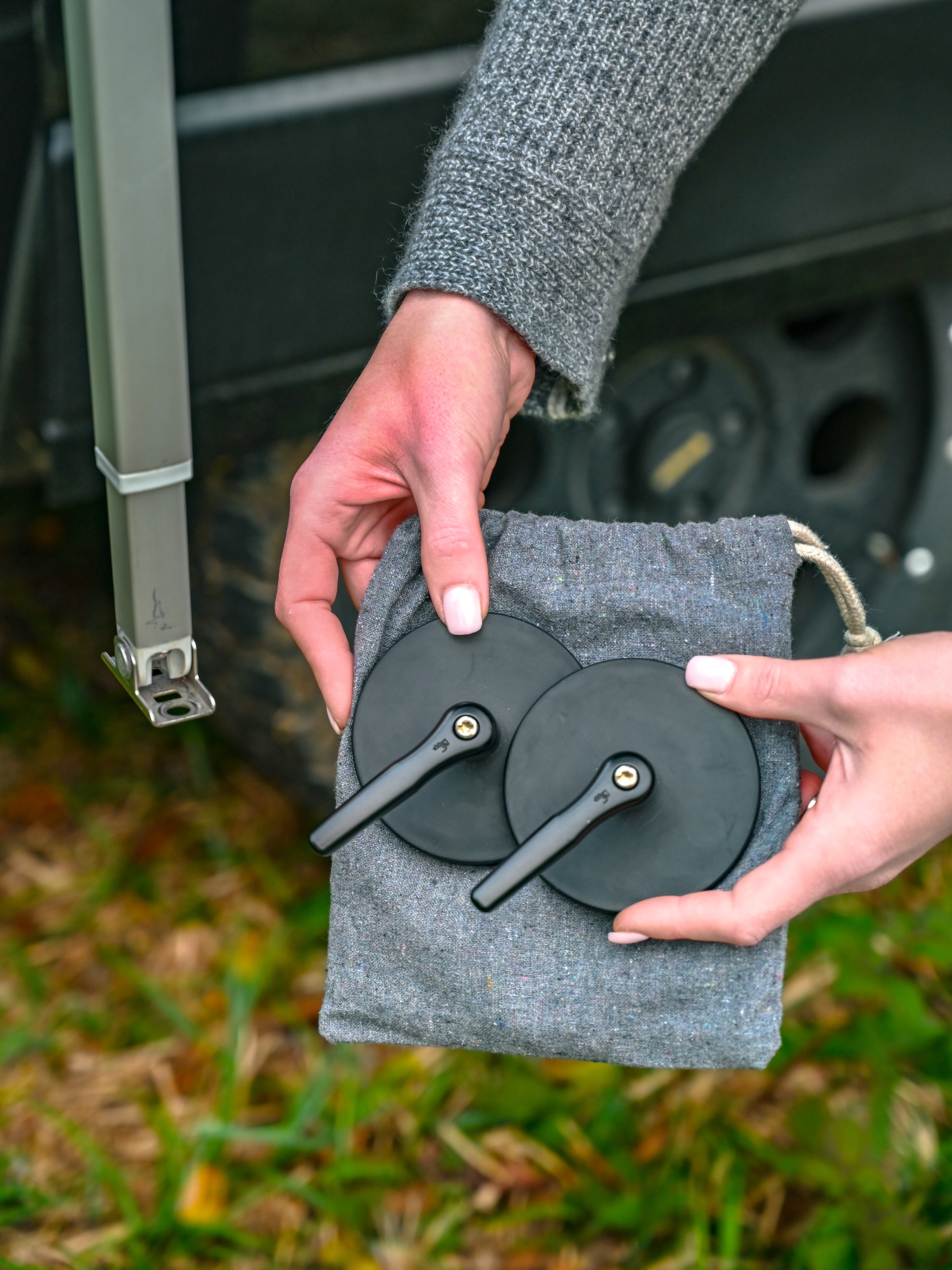

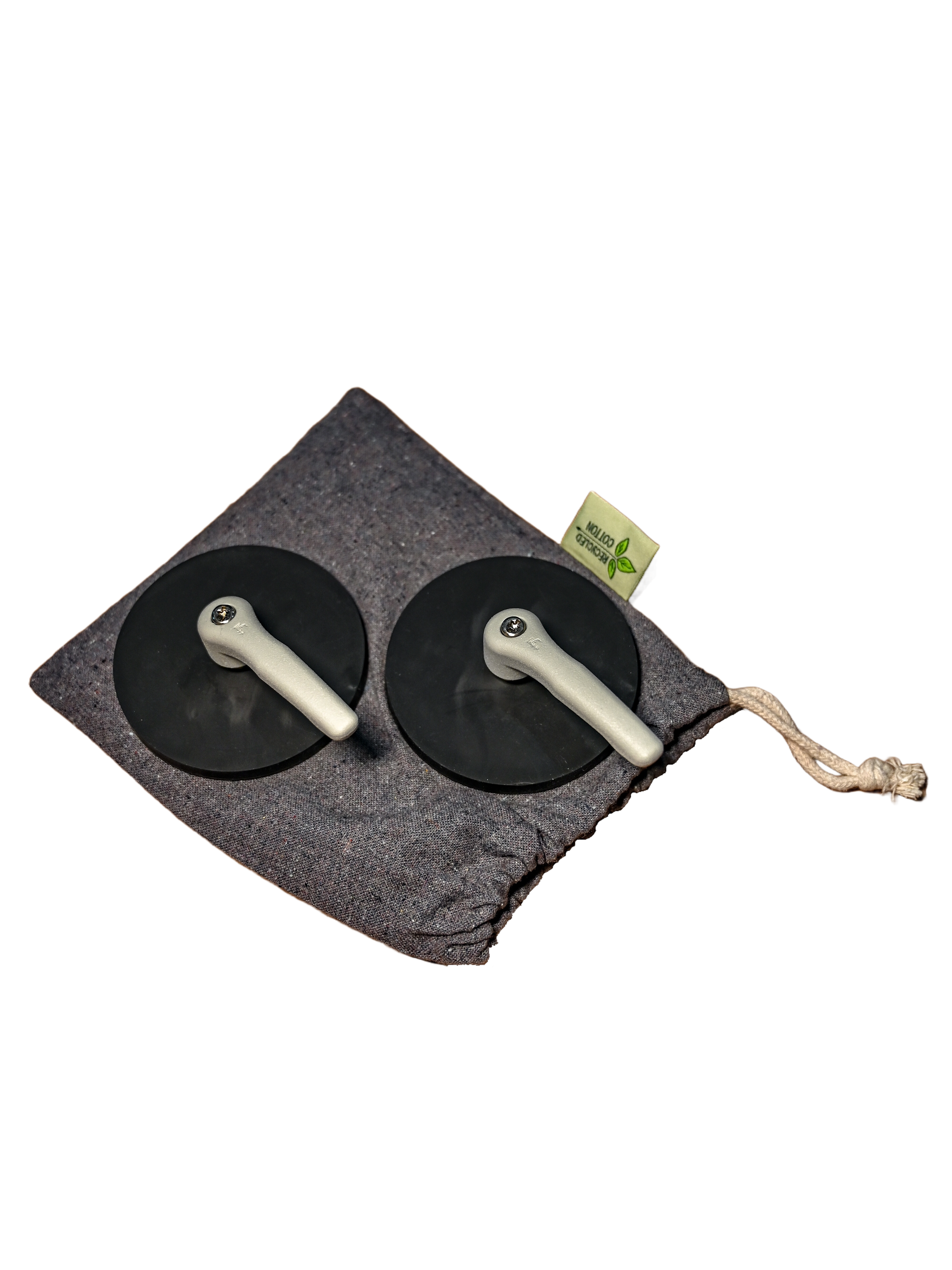

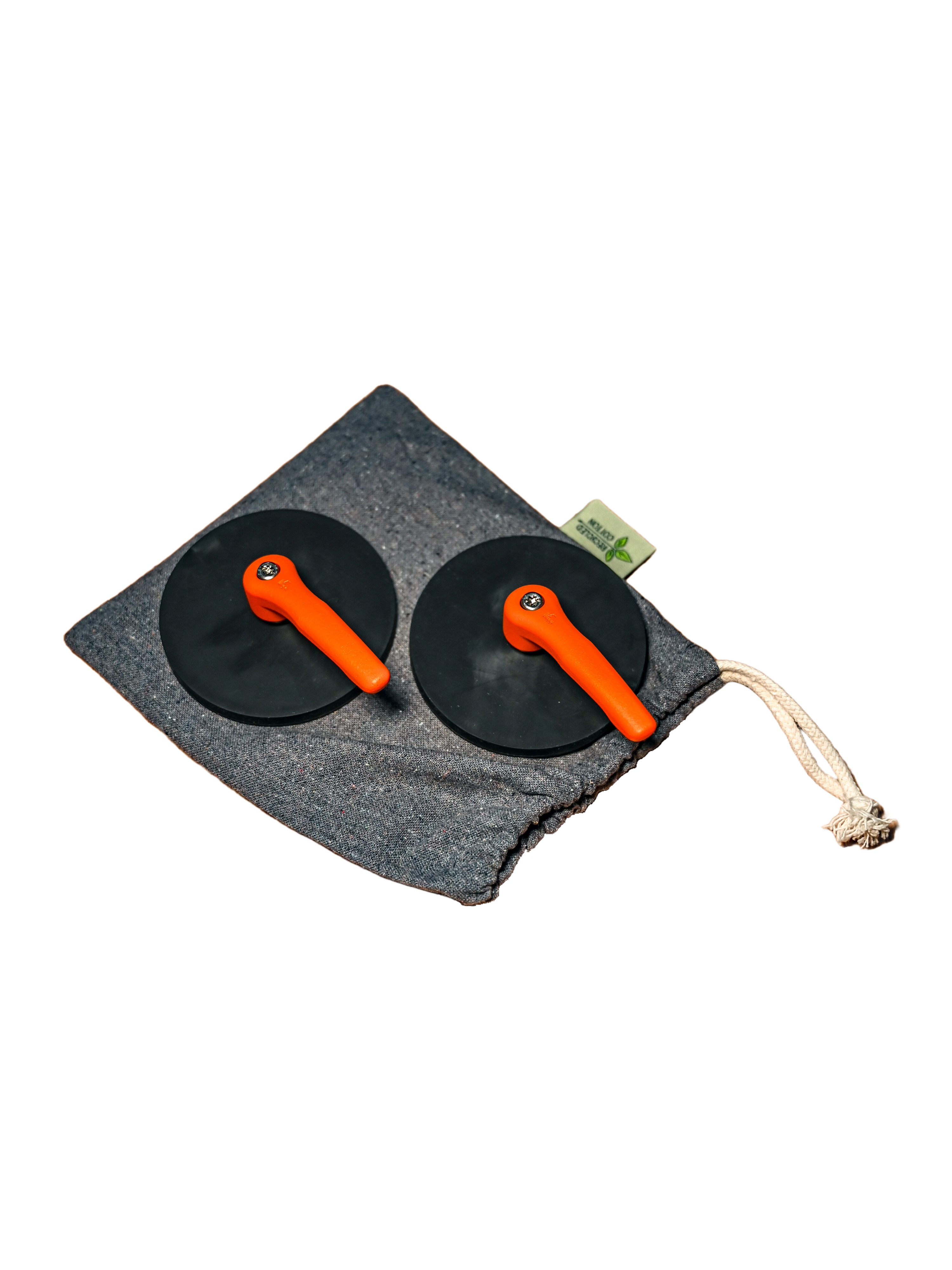

Quantity:

2x Offrotie Magnetic Awning leg Holder

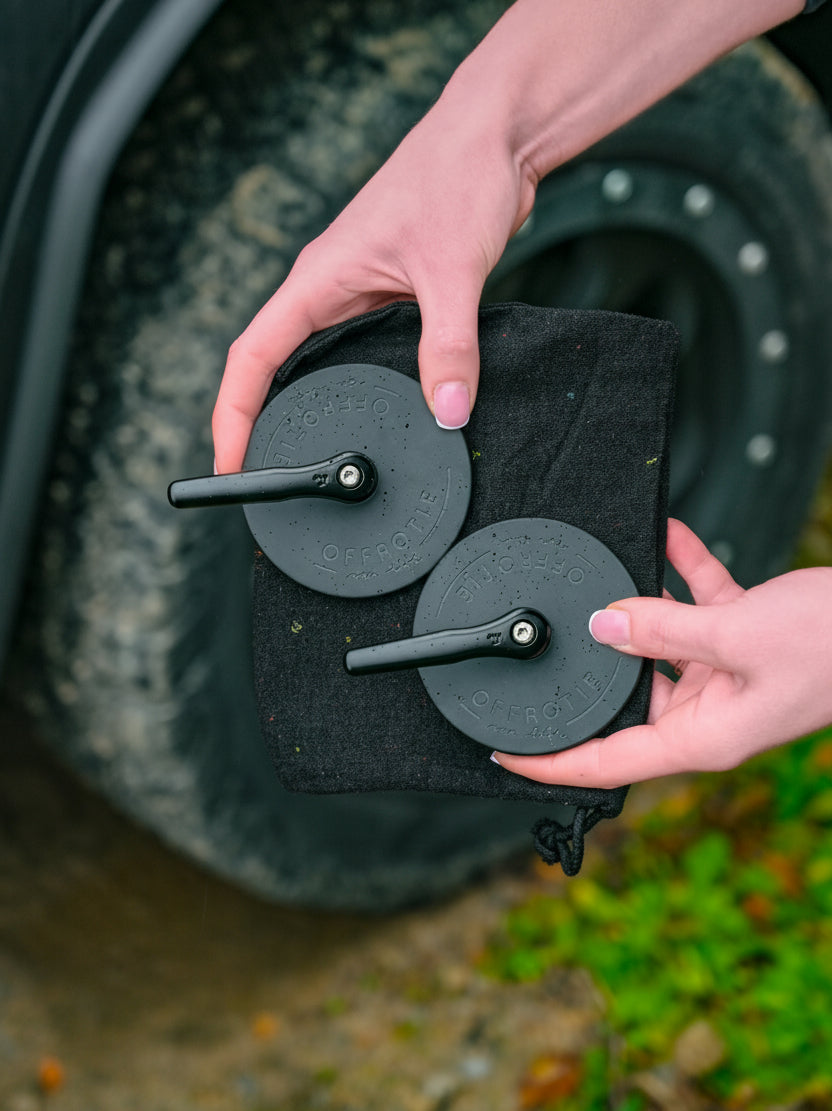

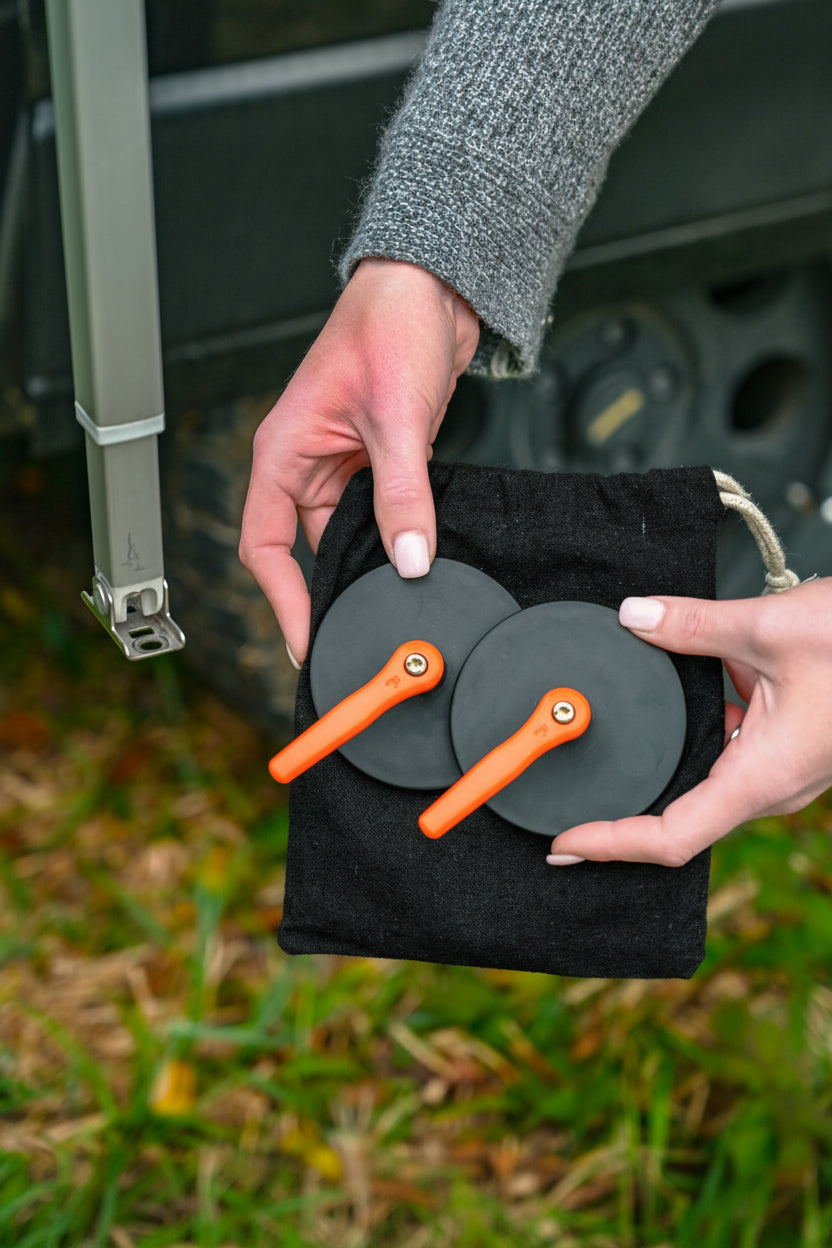

1x Pouch for easy storage

1x Foam inside pouch to reduce magnetization


Key Features:

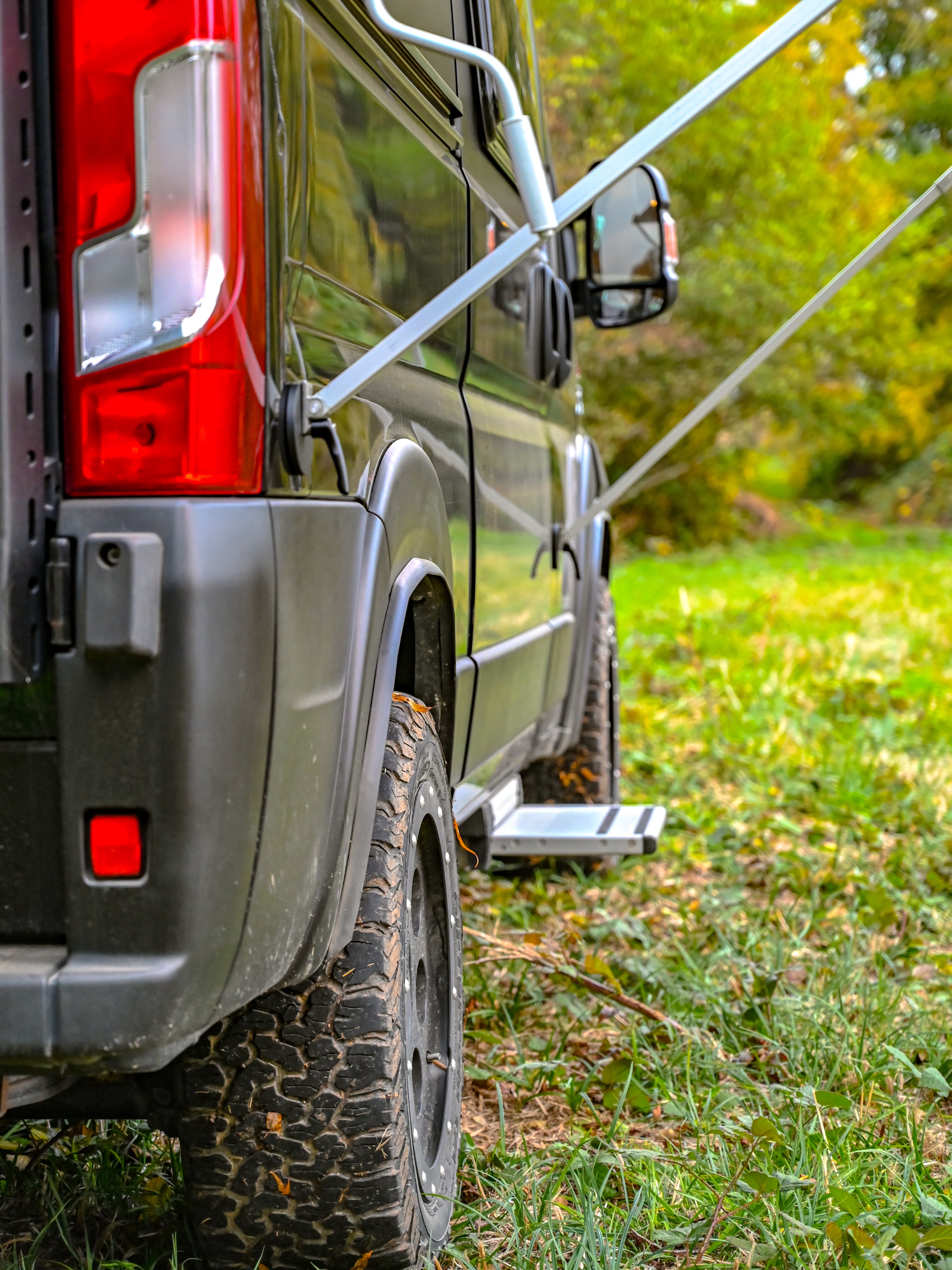

- Versatile Use: Excellent for securing your awning legs directly to your van's metal chassis. No tools needed, no longer need to secure your awning legs to the ground. Deploy the awning on any terrain: gravel, concrete, tarmac, rocky terrain.  Leave your magnets attached to your vehicle for the duration of your camping stay knowing that magnets don't fail.  The possibilities are endless!
- Durable Material: Made from Die-cast zinc, stainless steel, known for its, temperature resistance and durability. Ideal for long-term indoor and outdoor use.
- Color Options: Available in many sleek colors to match your style, allowing you to Personalize your experience.
- Magnetic Convenience: Features 2 rubberized neodymium magnets with a pulling force of 55kg each, ensuring a secure hold on metal surfaces of at least 2mm thick (like a refrigerator door). The 2mm rubber coating provides high protection against paint scratches. It is recommended to clean the metal surface before attaching the magnets to ensure optimal adhesive force.
Extra Safety: Rubberized magnets prevent paint scratches and are UV-resistant, suitable for foiled surfaces.
- Easy to Handle: The uniquely design handle ensures that removing these very strong magnets requires minimal effort.

Installation instructions:

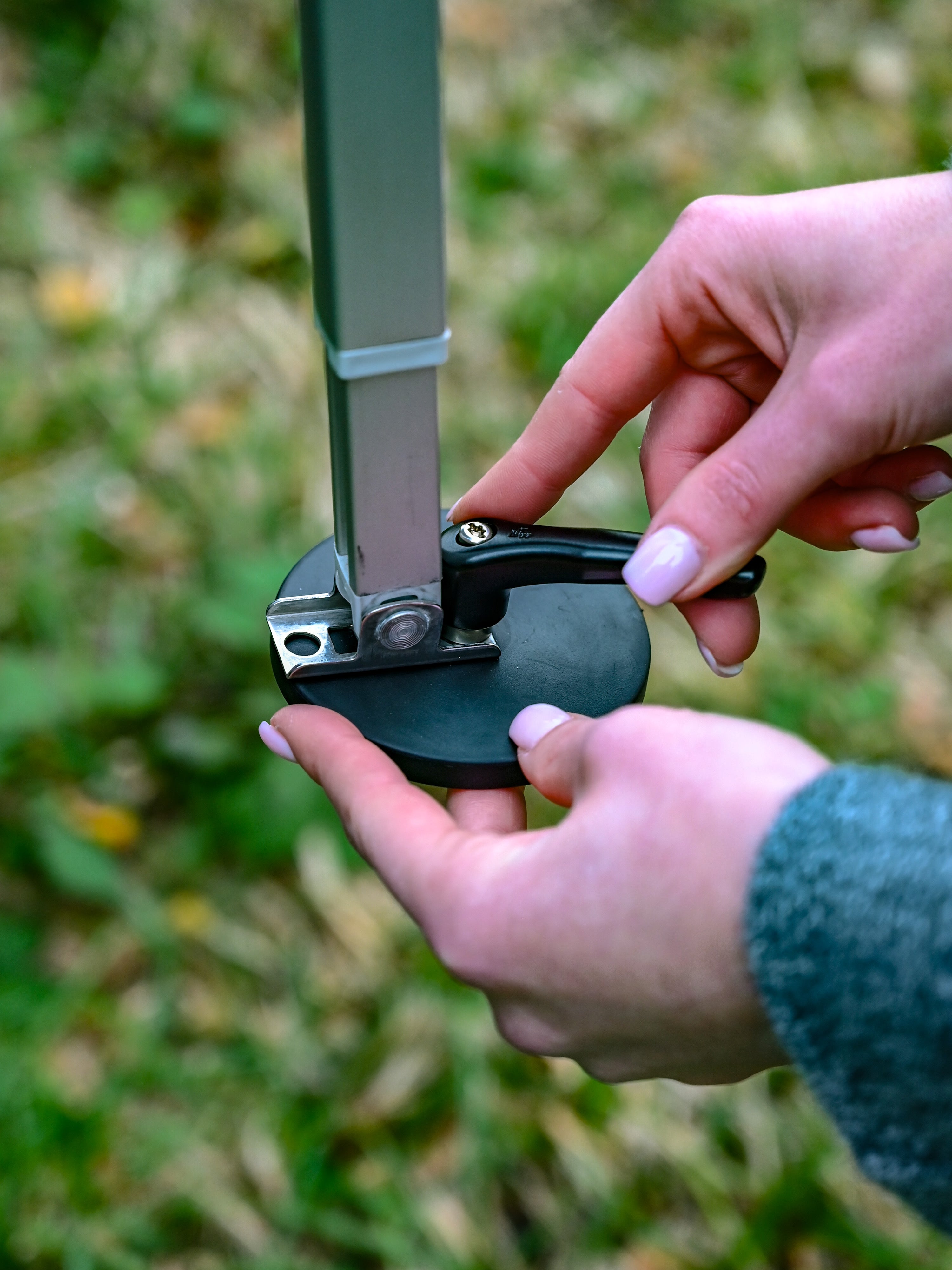

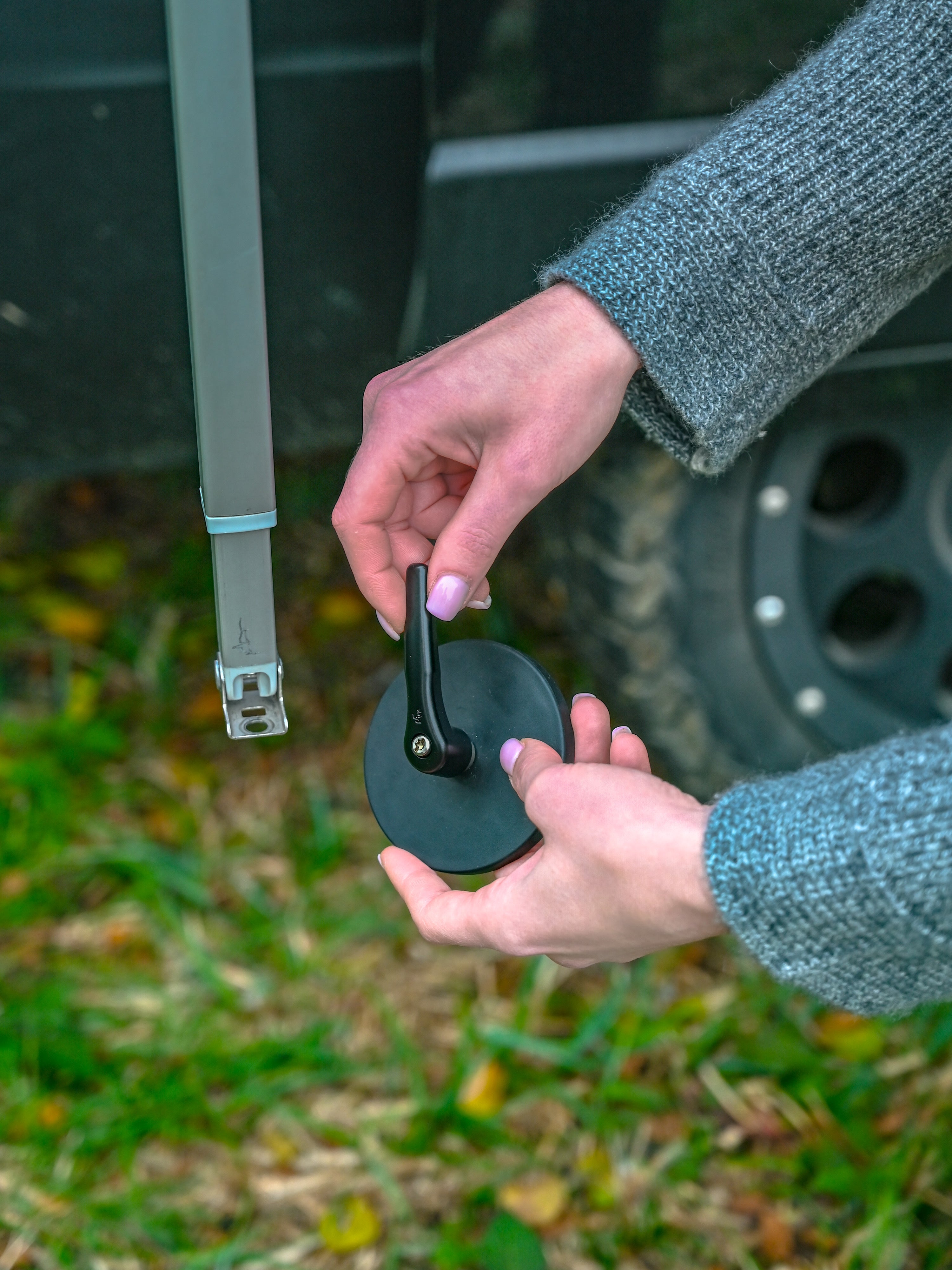

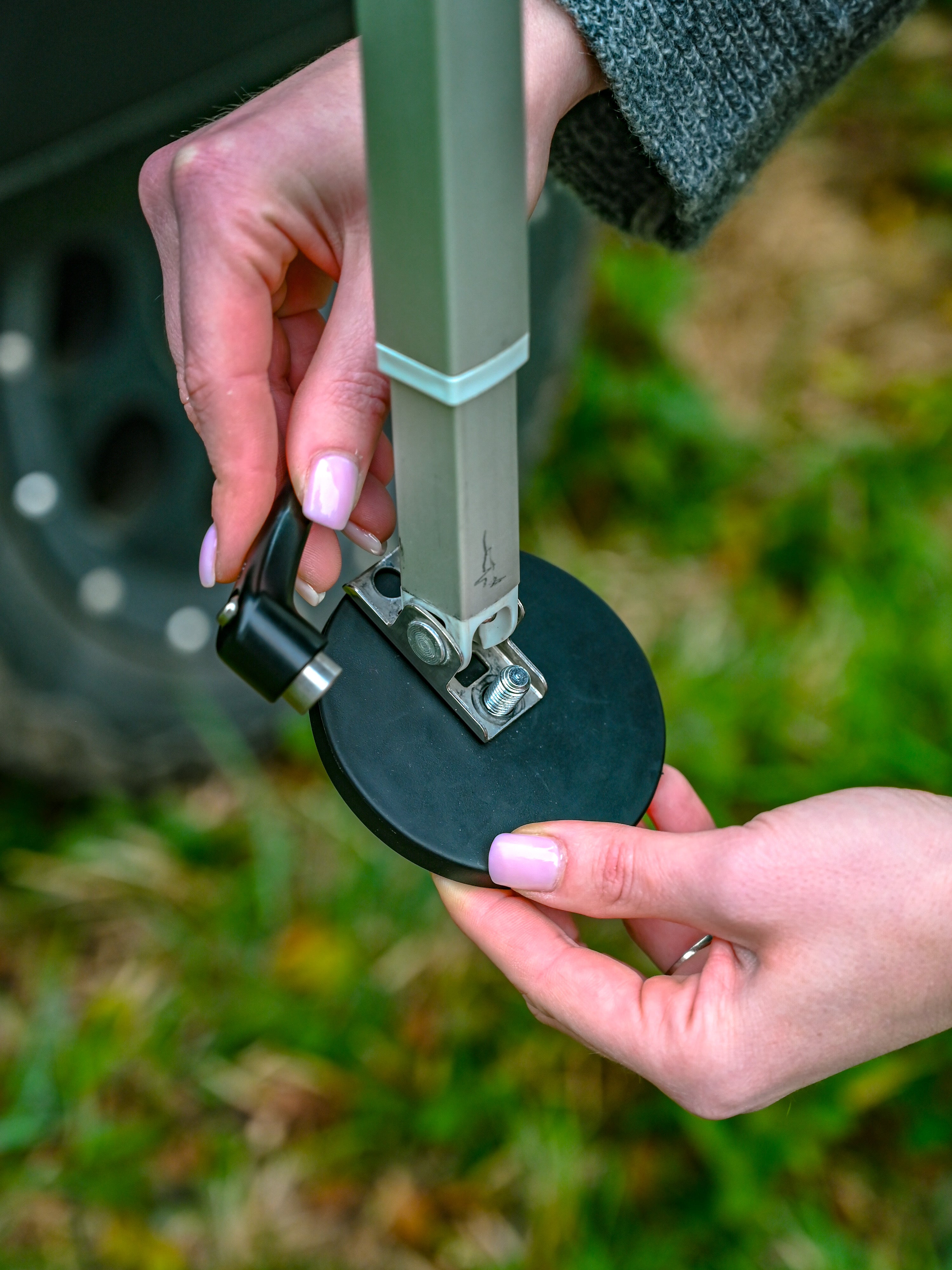

- Attach Magnet base to each leg: Take one magnetic holder, with one hand hold the handle, with the other hand unscrew the magnet base by spinning the magnet. Insert the magnet screw into the leg's lower hole (see picture for references). Bring the handle internal thread onto the magnet screw and spin the magnet to screw it into the handle.

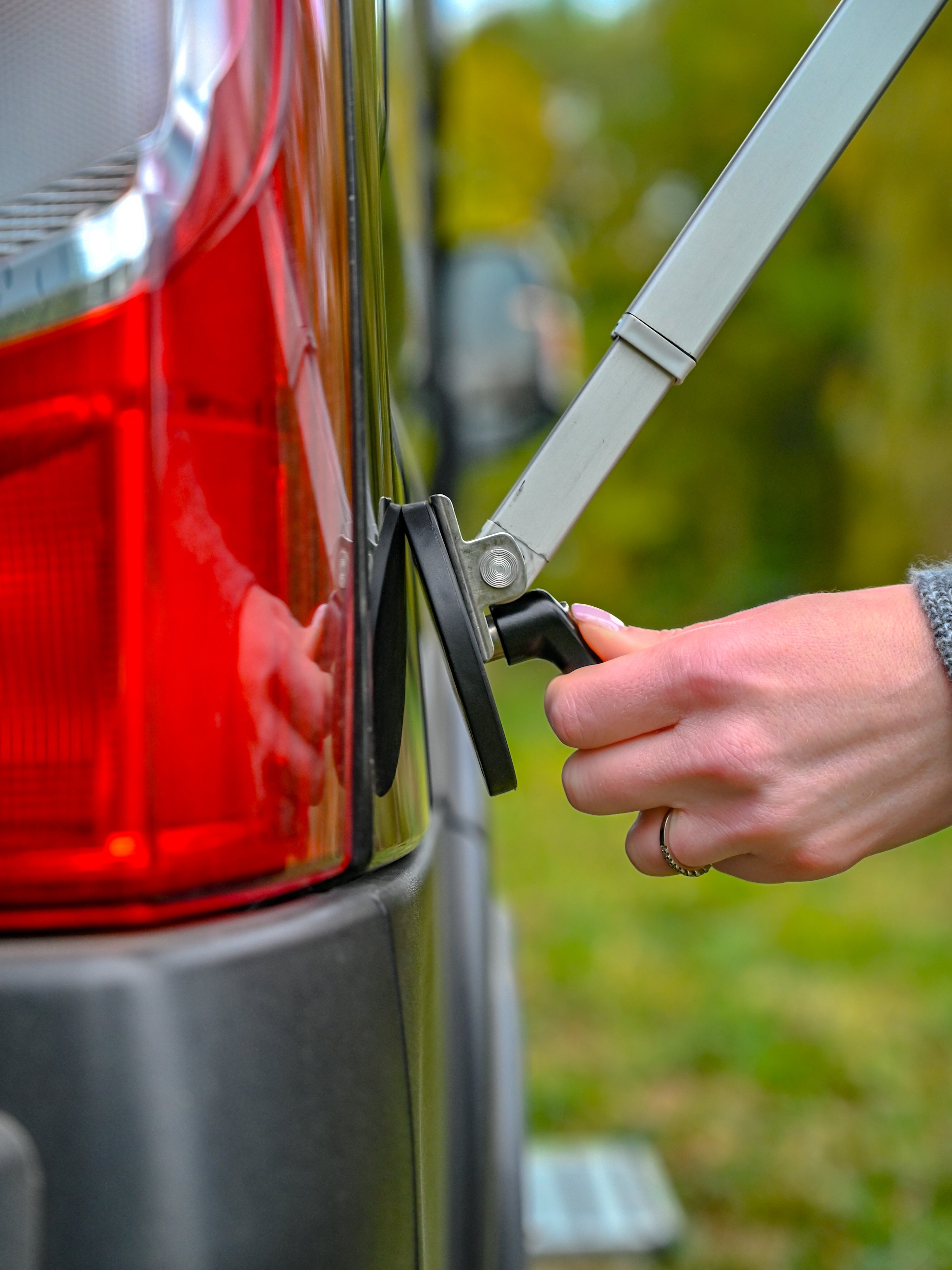

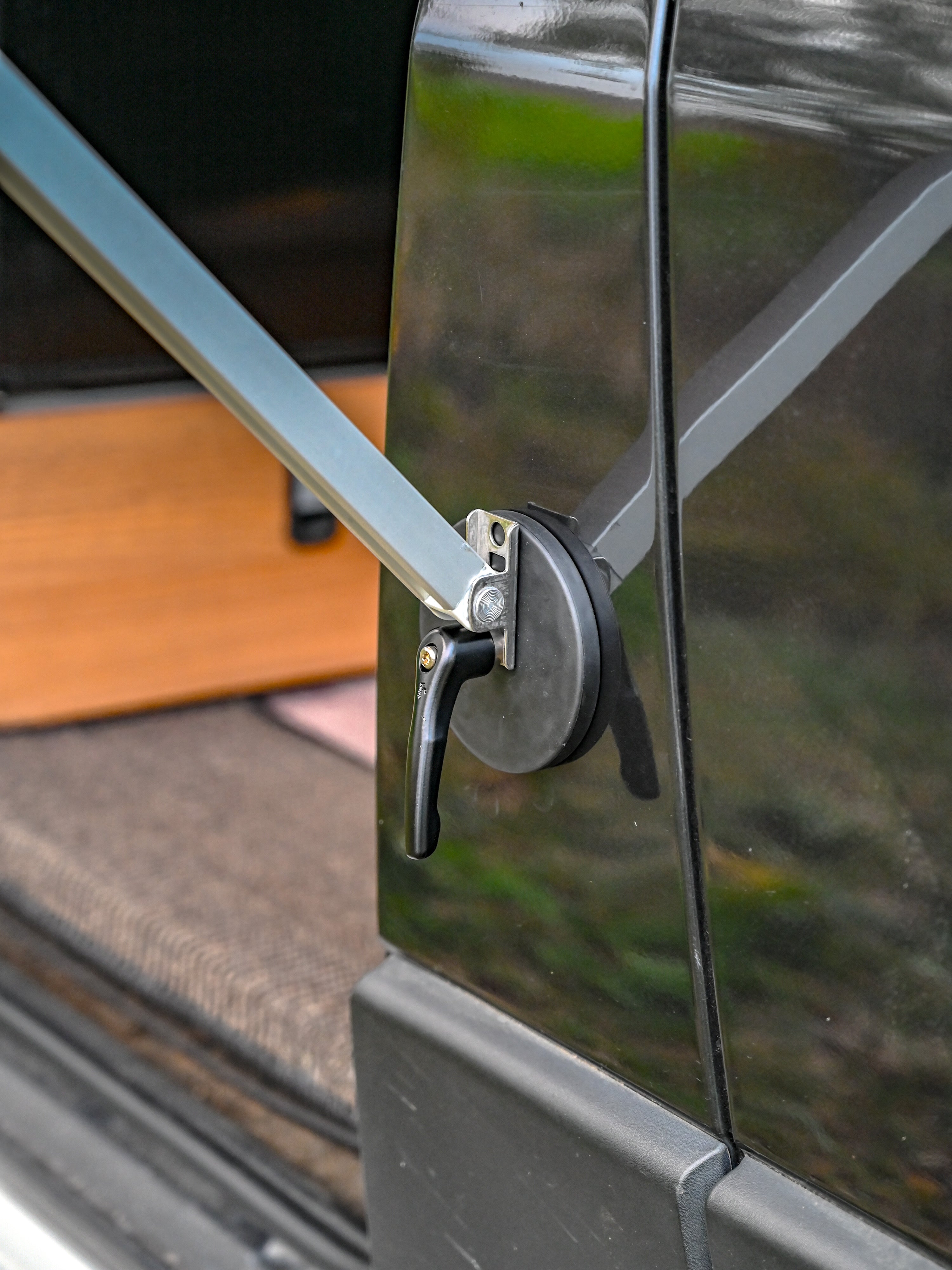

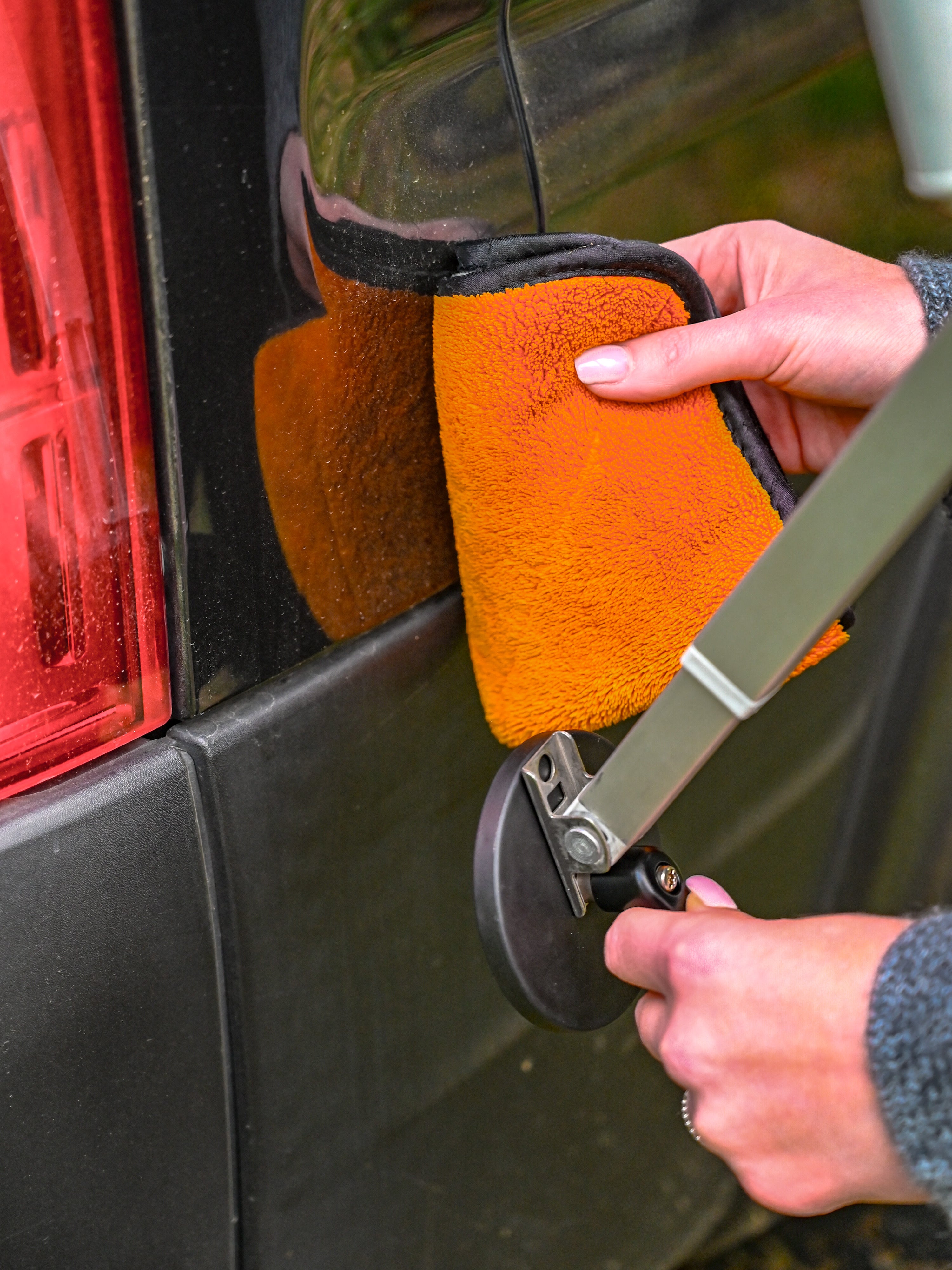

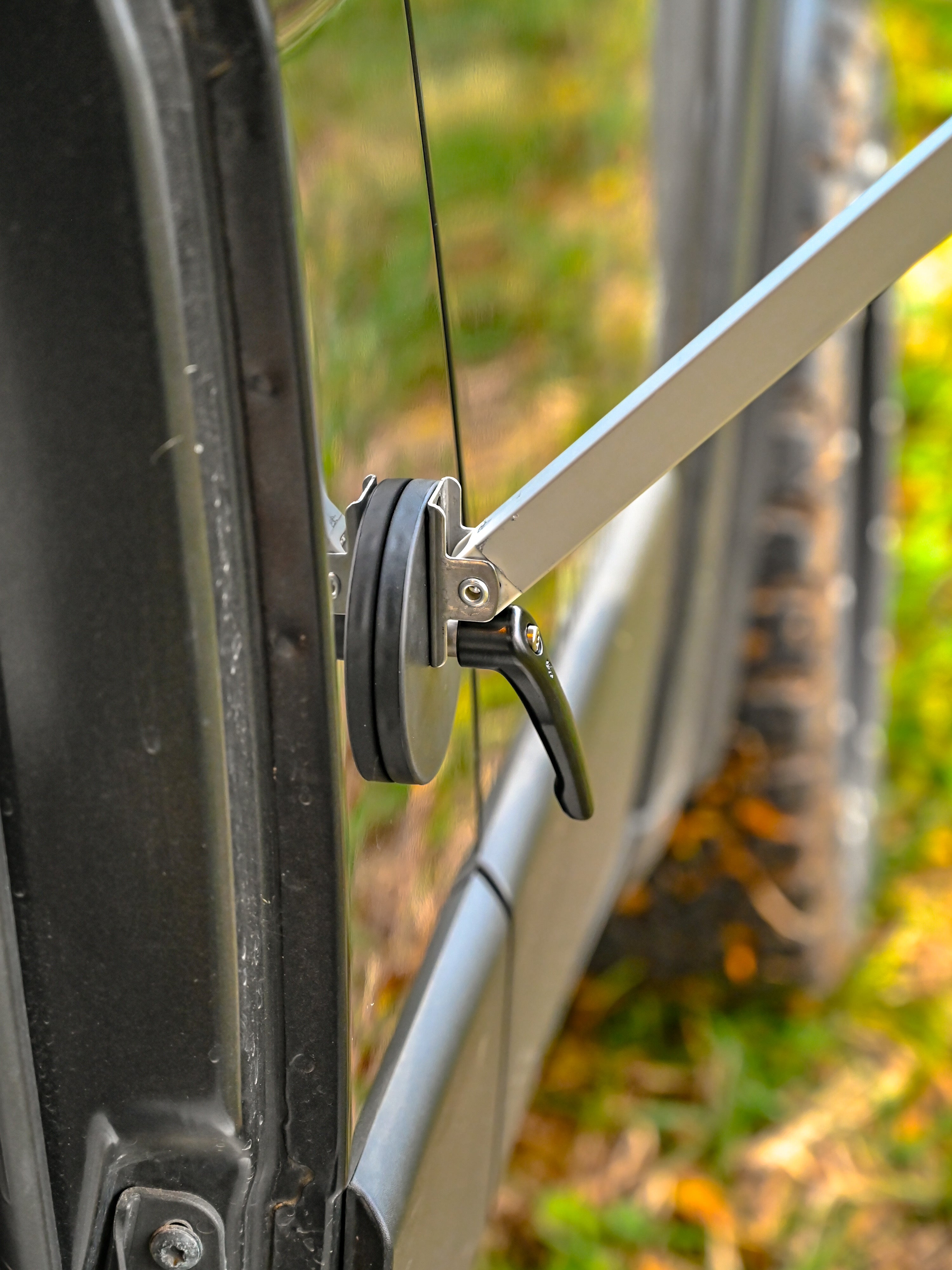

- Attach magnet and leg to the chassis: Clean the chassis surface where you are intending to attach the magnet with a microfiber cloth. Then bring the magnet base, handle and awning leg assembly closer to the chassis in a 45 degree angle using the handle. Keep fingers away between magnet and chassis surface. The magnet will securely attach to the chassis. Extend your awning legs as per your awning manufacturer instructions. Do not lean over or apply extra downward force on the awning legs, doing so will cause the magnets to slip and fall off.

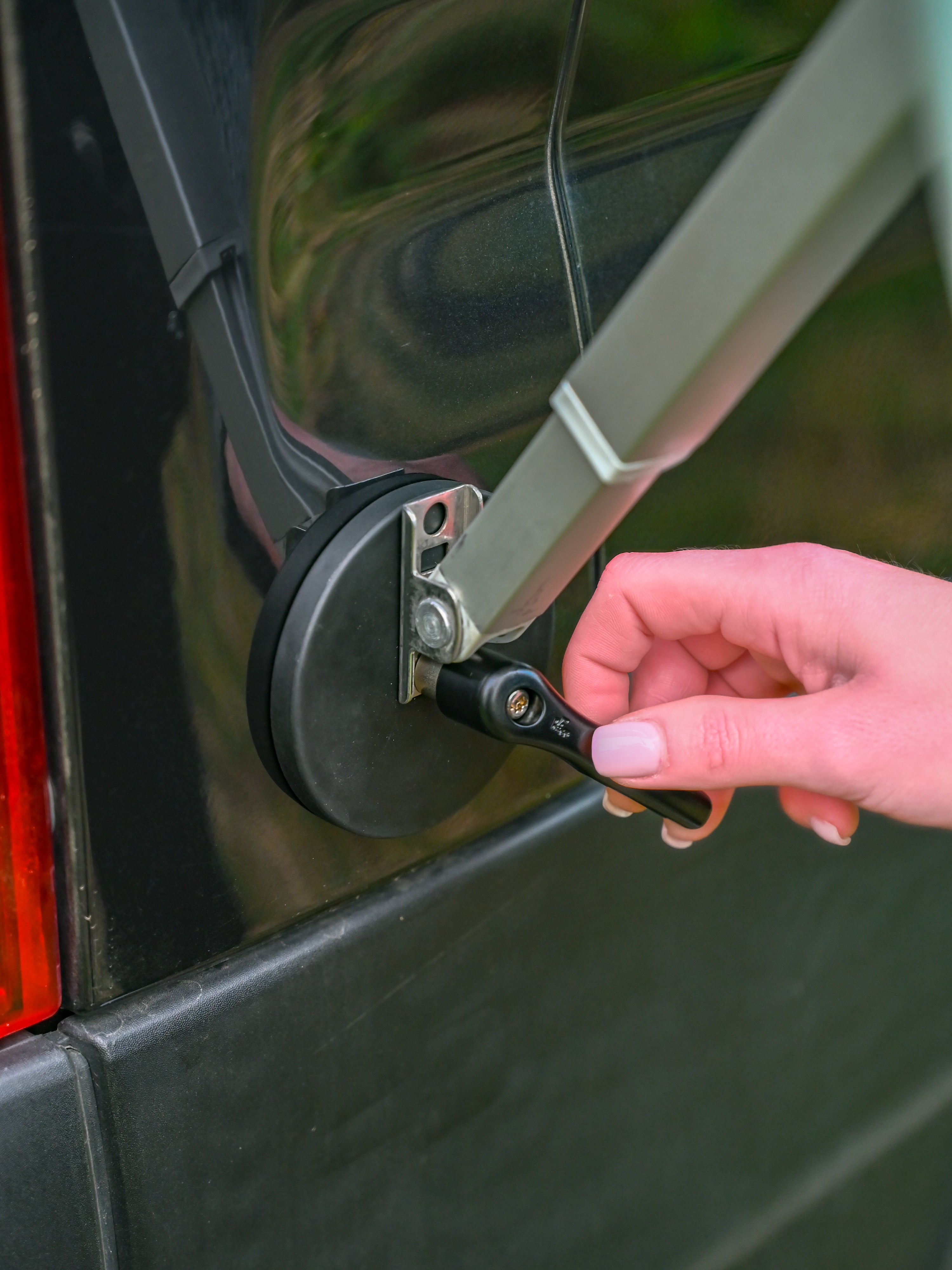

- Adjust tension using clamping lever: To secure the leg tightly to the magnet base use the handle as a clamping lever. Pull the lever up to release the serration engagement, the lever can be moved to the desired position without moving the screw. Releasing the lever will automatically engage the serration with the screw, allowing to tightening or loosening.

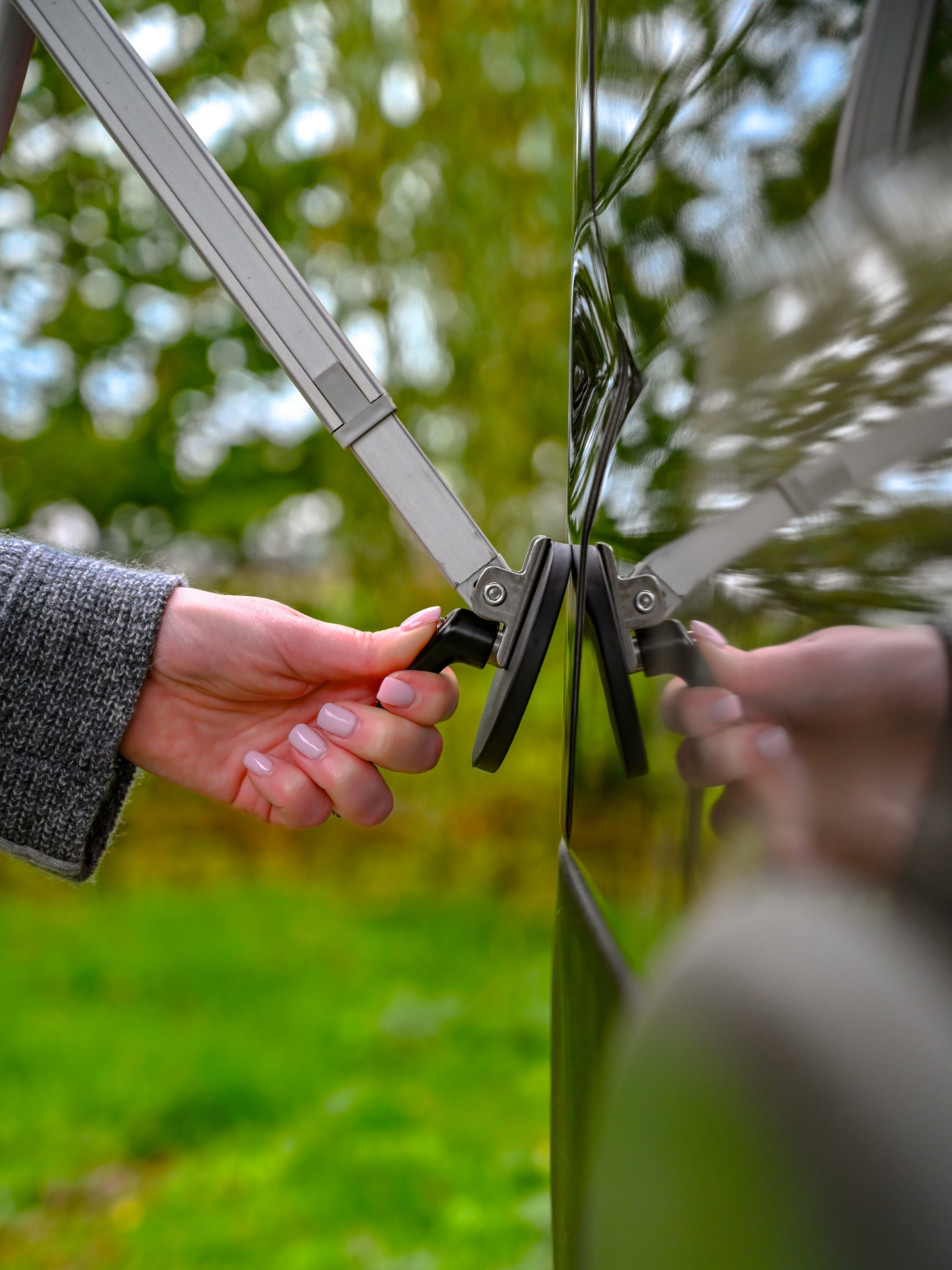

- Removing the magnets: Follow your awning's manufacturer instructions for closing the awning. Keep the legs attached to the magnet base, and using the handle as a lever pull up, the magnet will detach from the surface. Then hold the handle with one hand, and with the other hand unscrew the magnet base by spinning it. Once the magnet is completely unscrewed from the handle, take it out of the leg. Put the magnet and the handle back together. Stack one magnet on top of the back of the other magnet and then insert them in the pouch, with the magnetic surface facing the foam. This will keep the magnets from magnetizing against other surfaces or metal parts inside your drawer or storage location.



Safety and Care Instructions:

- Safety First: Keep away from children to avoid injury from squeezing or sharp edges from broken magnets. Avoid getting your fingers squeezed between the magnets and the metal surface due to the strong attractive forces. Strong magnetic fields can affect or damage electronic devices. Pay particular attention for pacemakers, implanted defibrillators, hard drives, credit and debit cards, hearing aids and loudspeakers.
- Magnet Care: Always bring your magnetic gadget close to the metal surface in a 45 degree angle to avoid rapid collision with the surface. Rapid collisions can splinter the internal magnets and reduce their functionality and makes them vulnerable to environmental influences like moisture and oxidization.

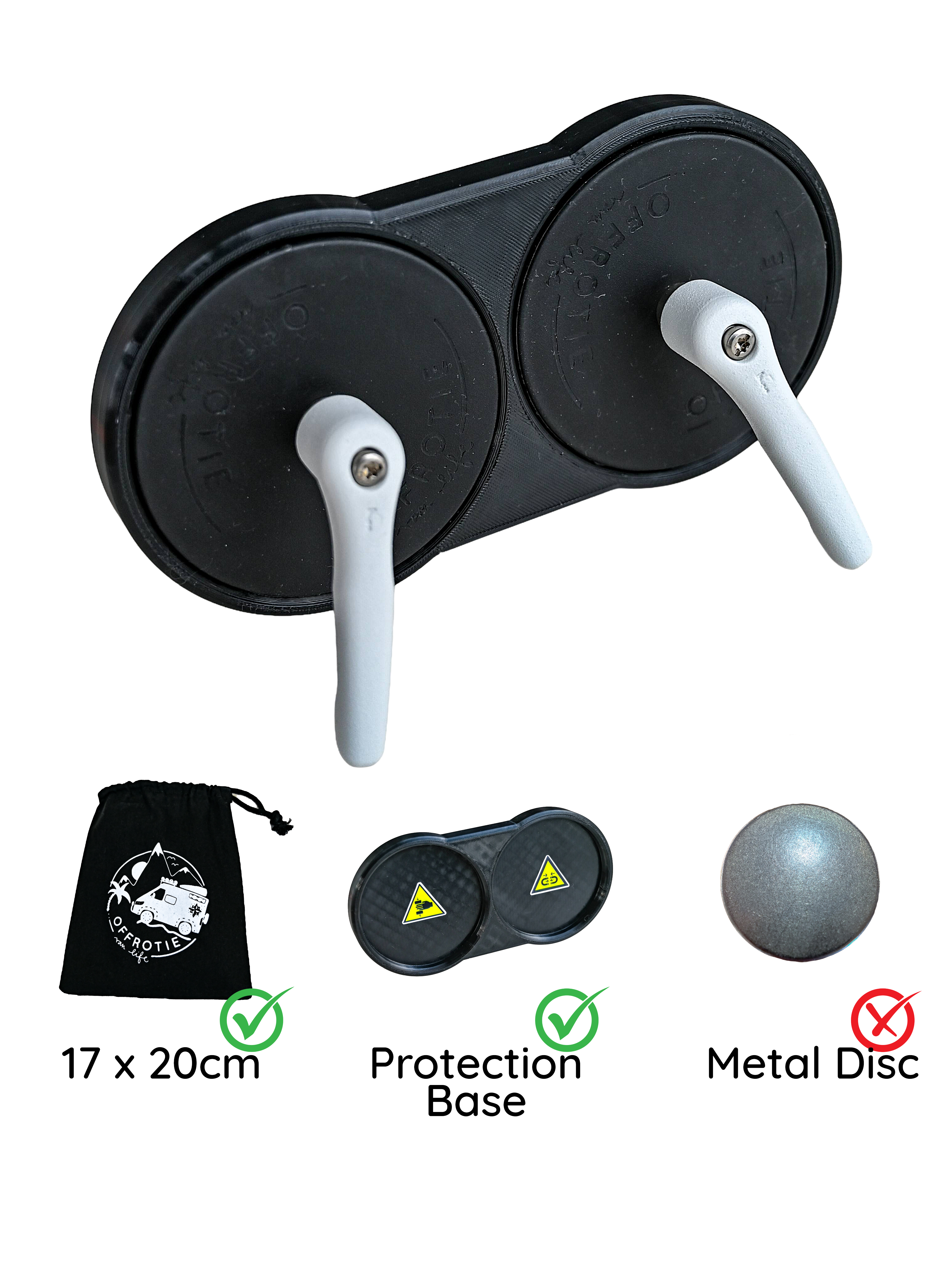

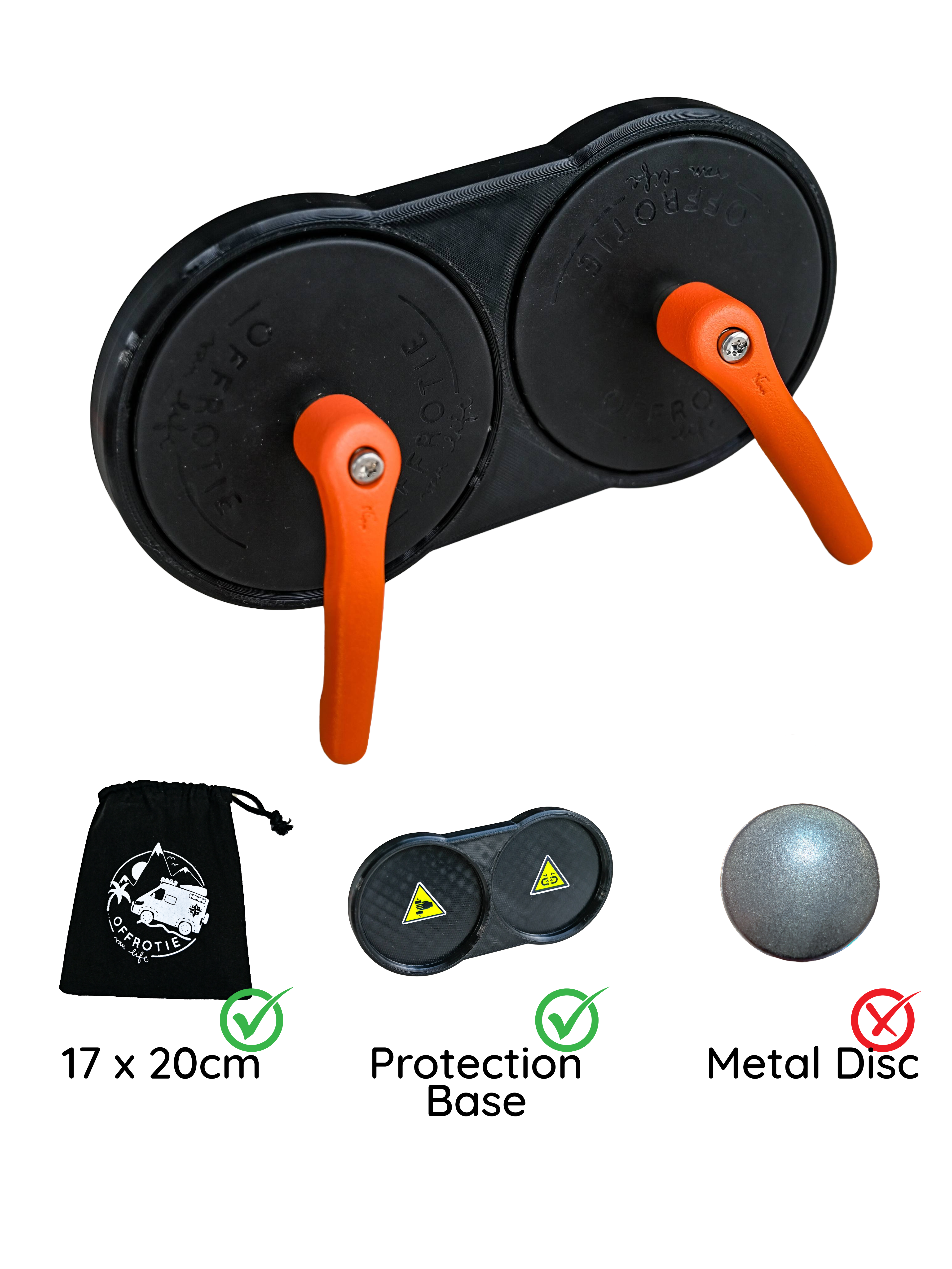

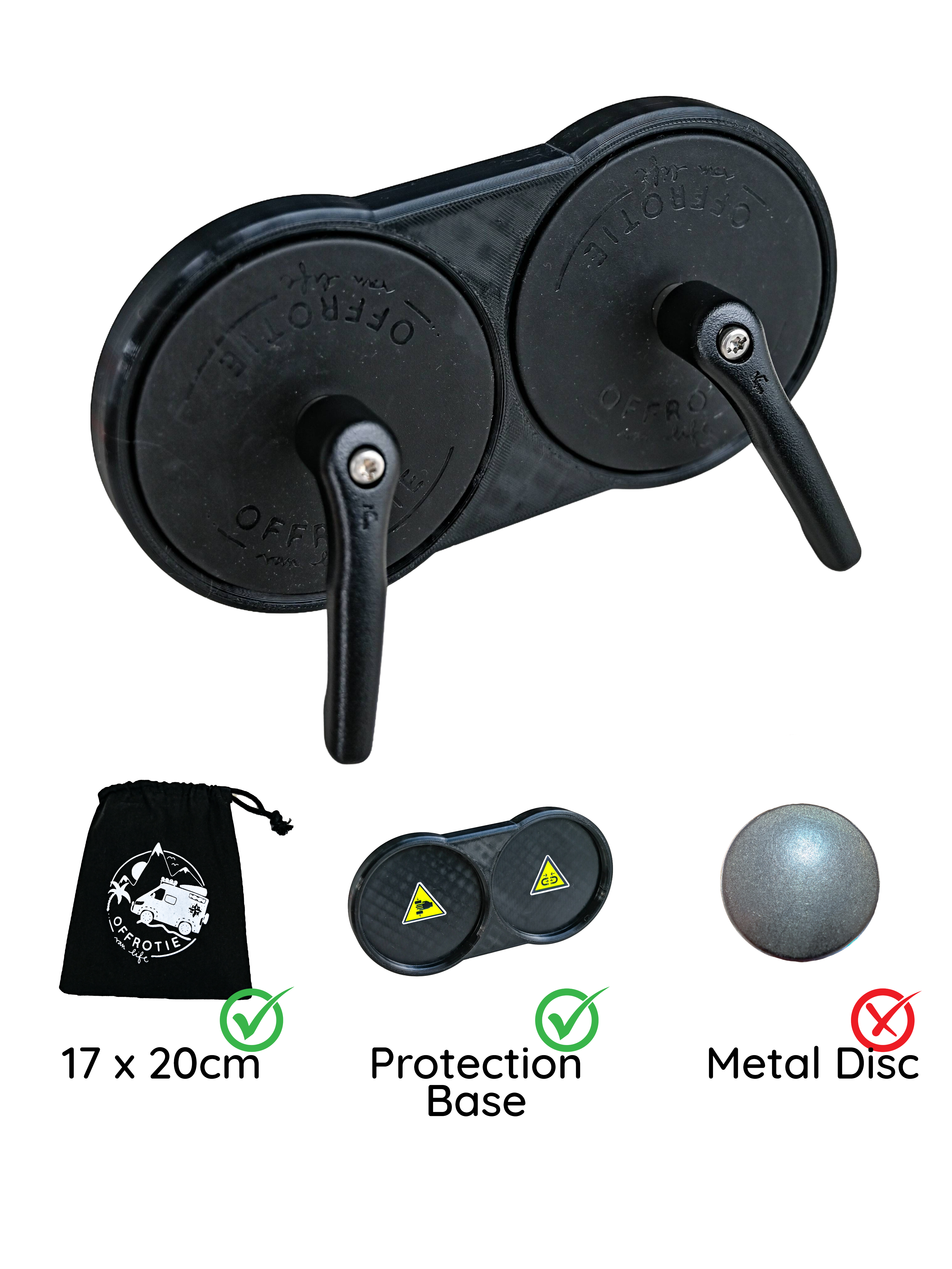

- Storage: Always store the magnets with the magnetic surface facing the foam inside the pouch. Avoid bringing both magnet's magnetic surfaces together, it will be hardly impossible to bring them apart and requires a lot of force to do so. We recommend to stack one magnet on top of the other magnet's back side, as per the original packaging.
- Heat Sensitivity: Magnets lose adhesion above 80°C, so check the temperature before use.
- Windy Conditions: The magnetic holders can withstand very strong winds, but the awning itself cannot. Never exceed your awning's manufacturer wind limit.
-
Detach and Drive: Always take your magnetic gadget inside your vehicle before driving away.



Liability:

The Offrotie branded Awning Legs Magnetic Holder is specifically designed for use with any brand of van awning as an accessory. Both the buyer and seller expressly agree to disclaim any liability for consequential awning damages in relation to this accessory. It is important to carefully follow the manufacturer's operating instructions, safety guidelines, and warnings when using this accessory.

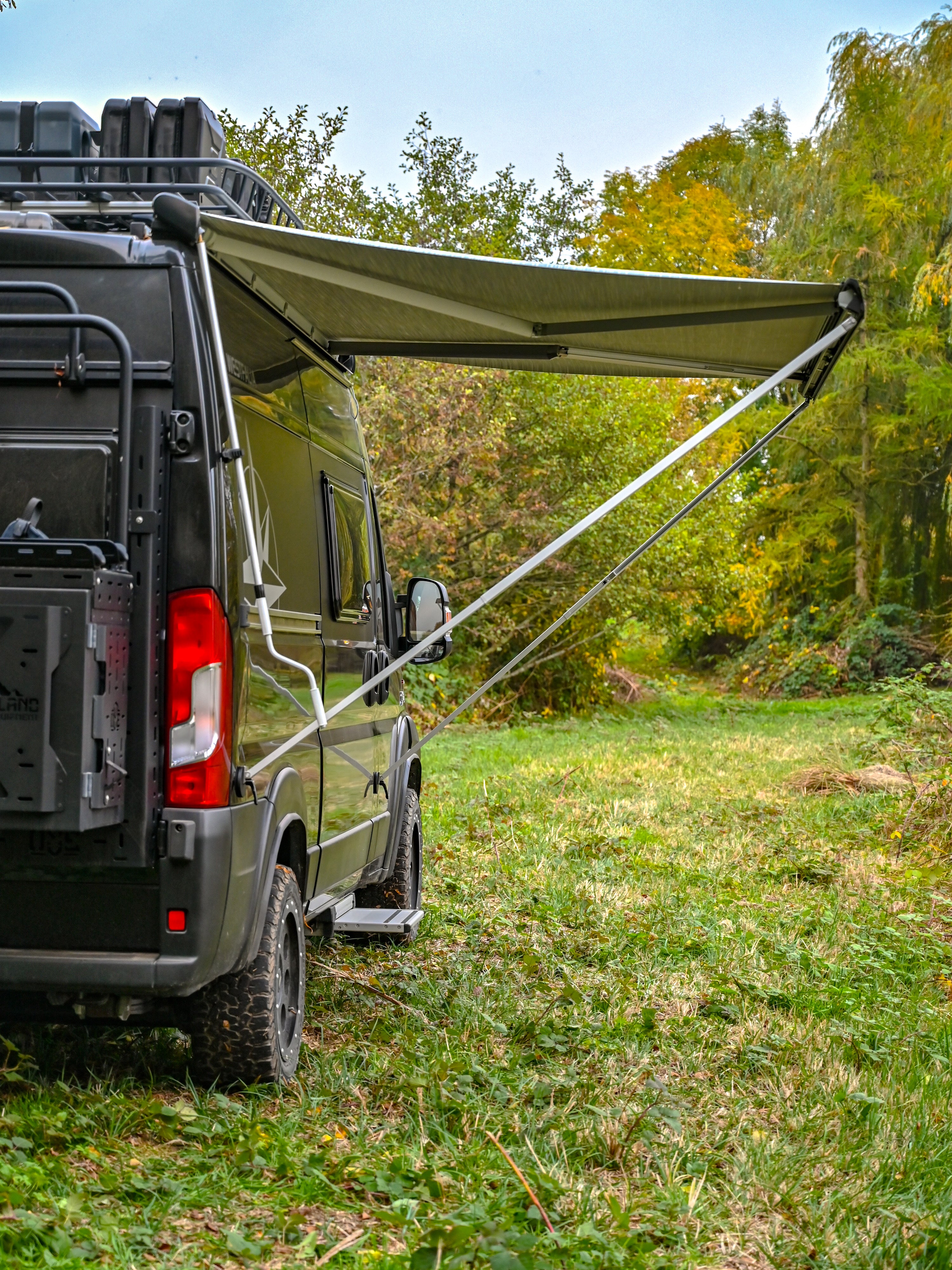

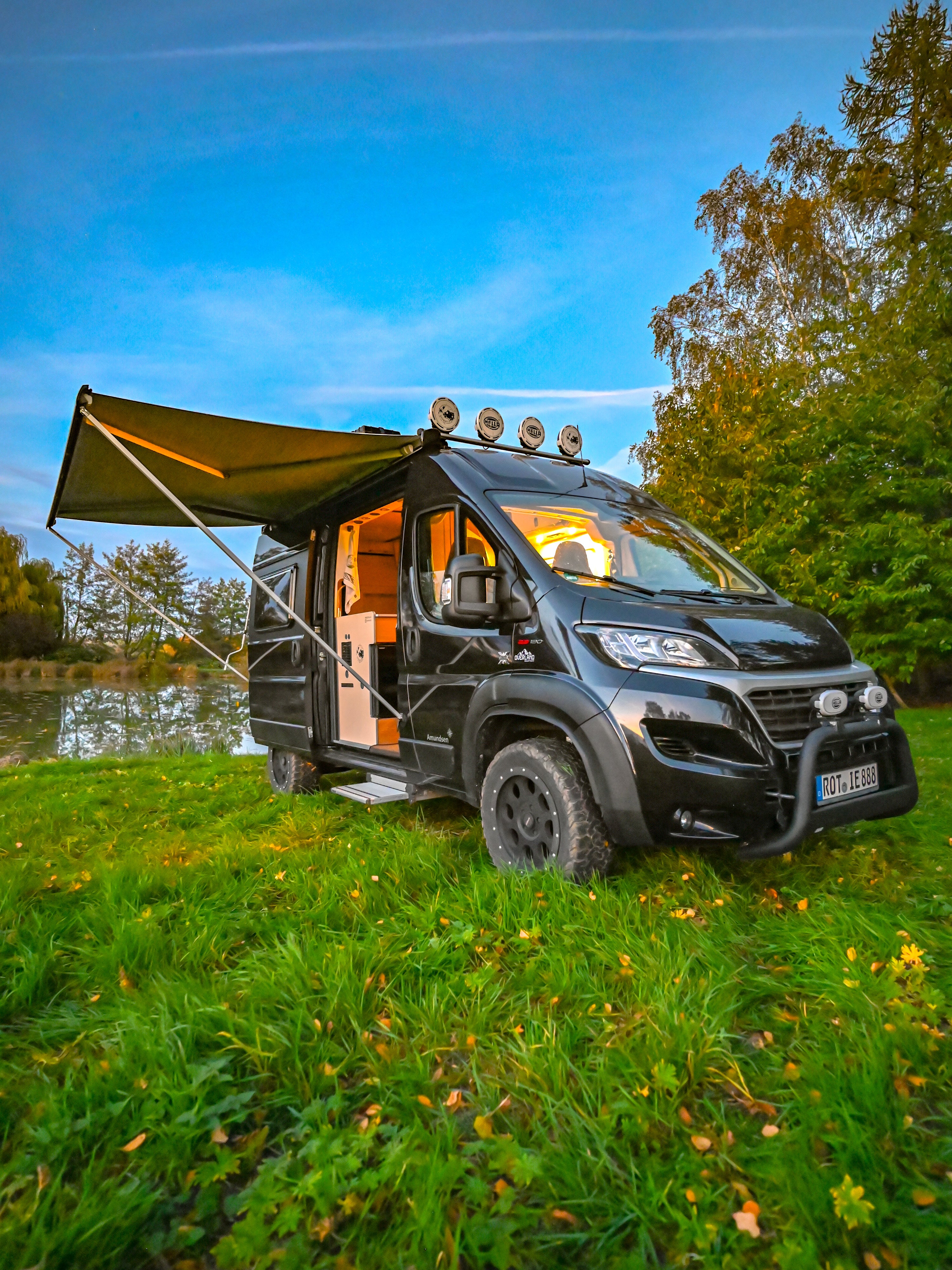

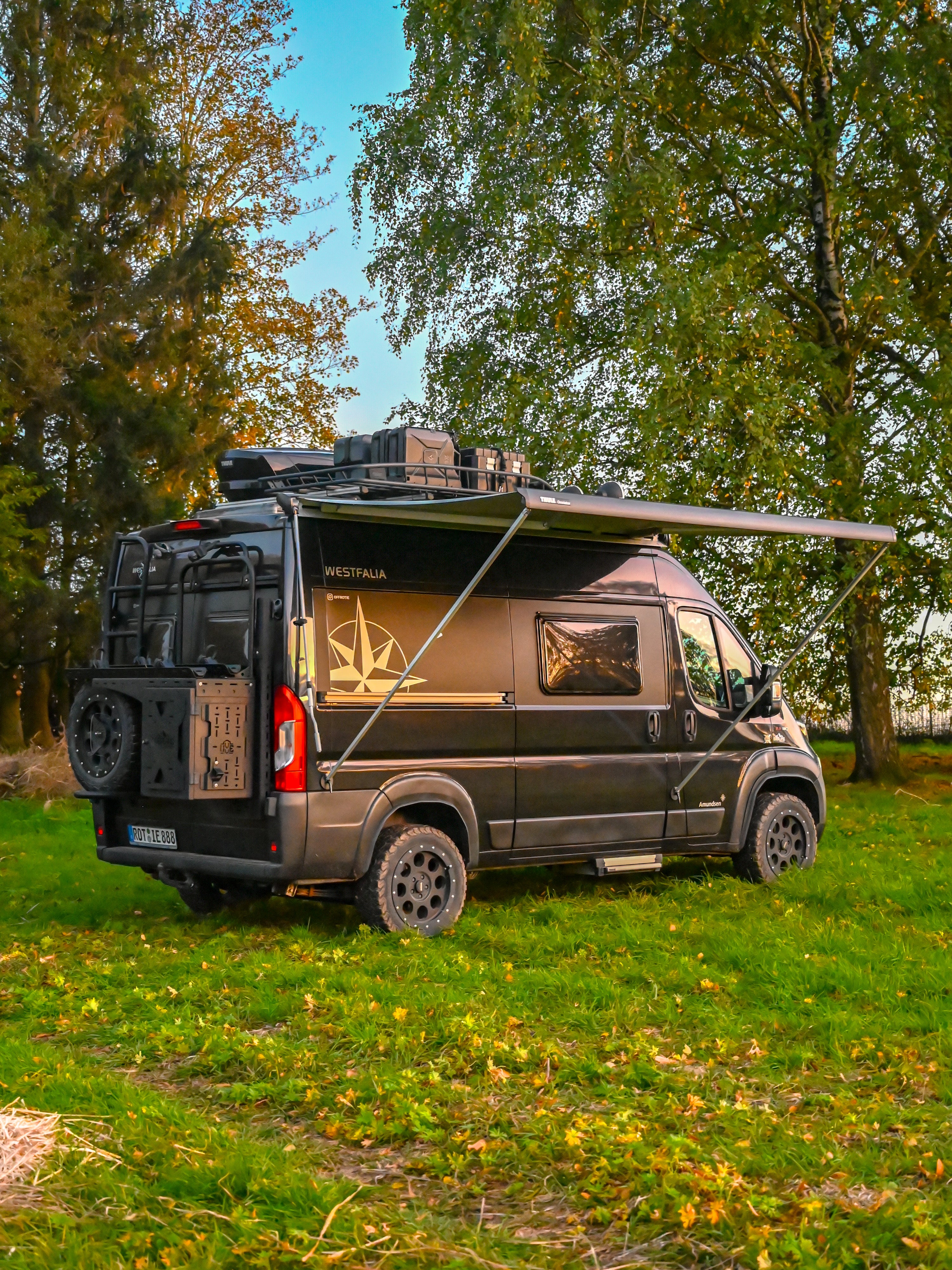

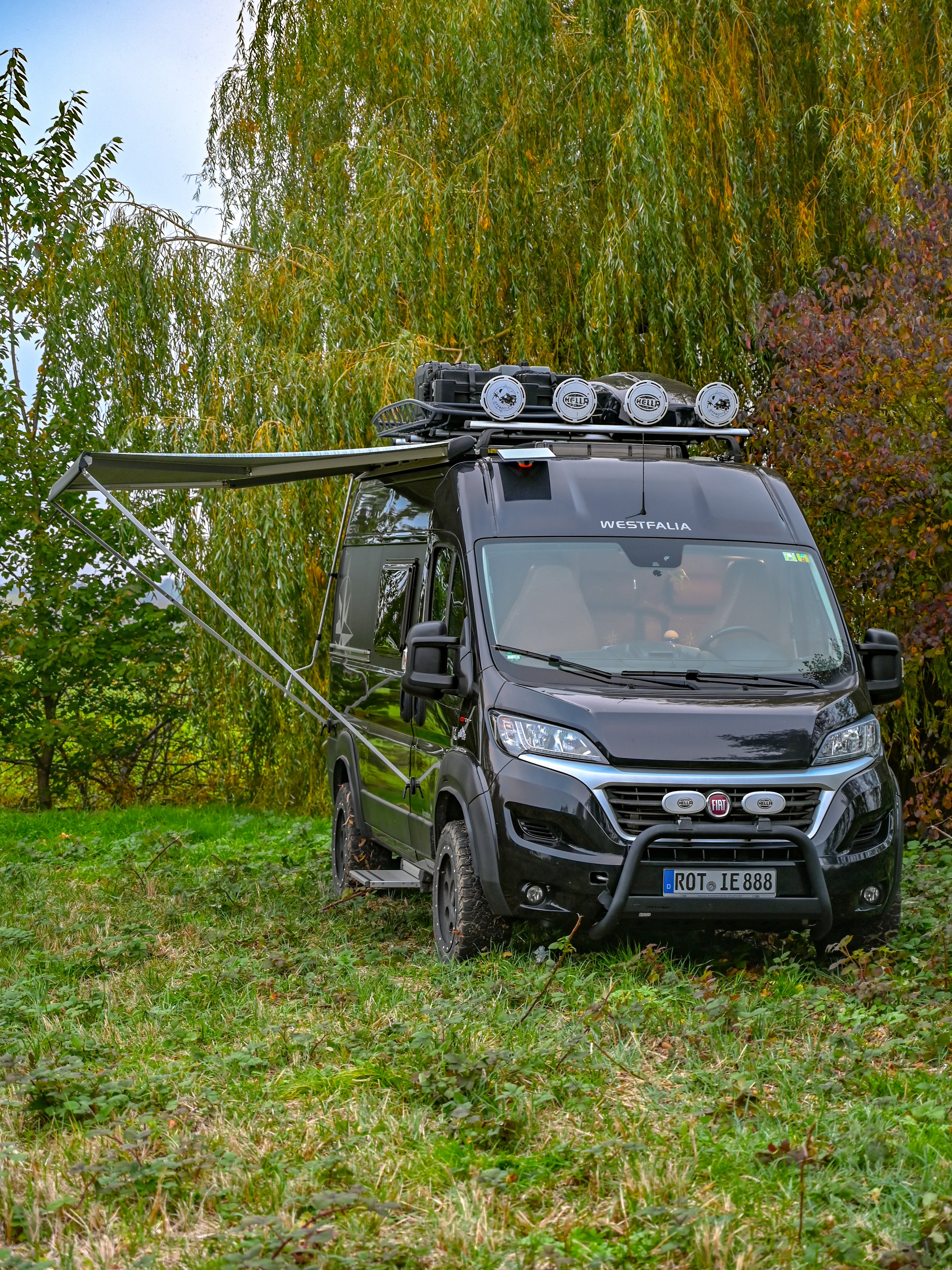

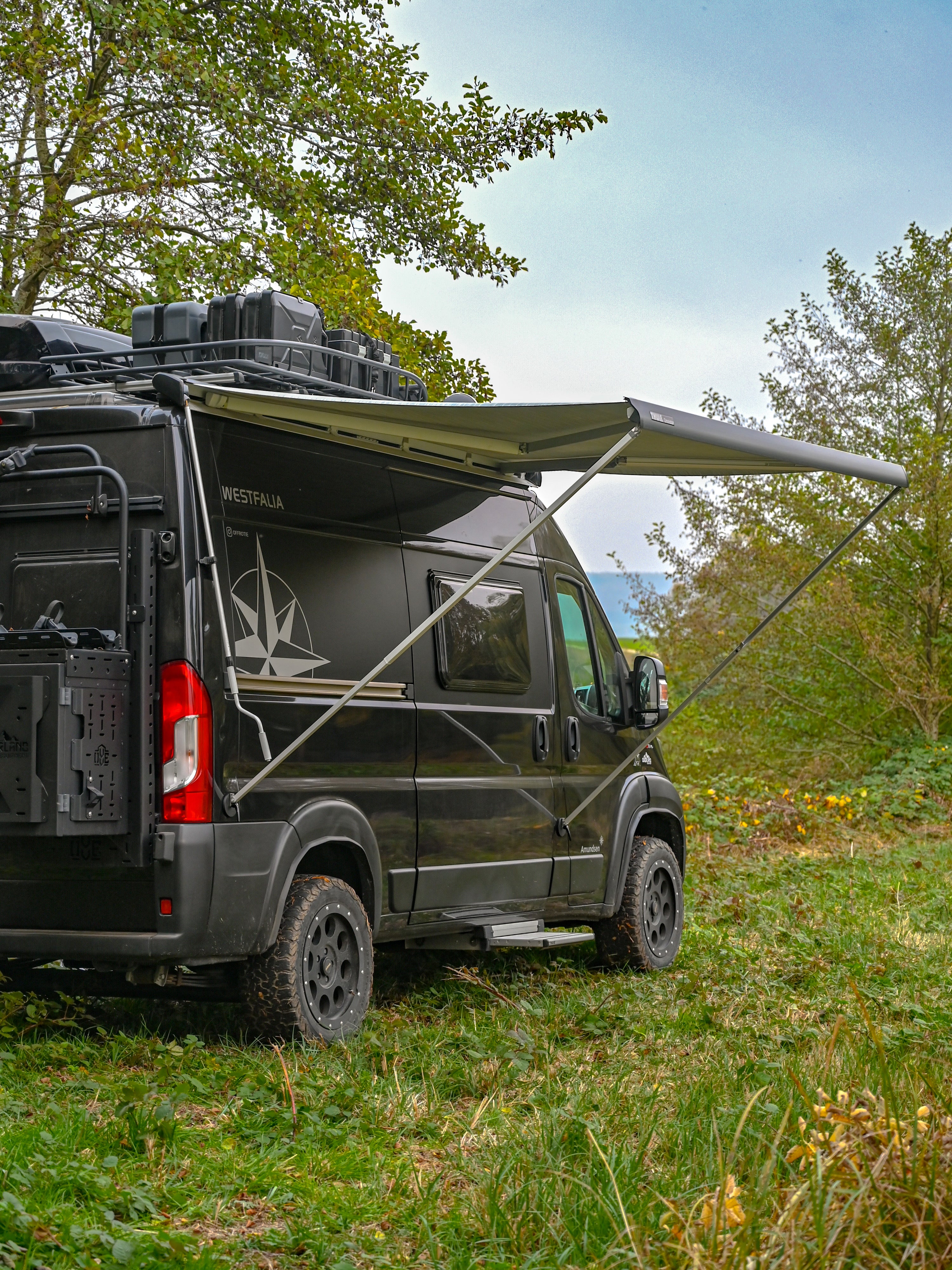

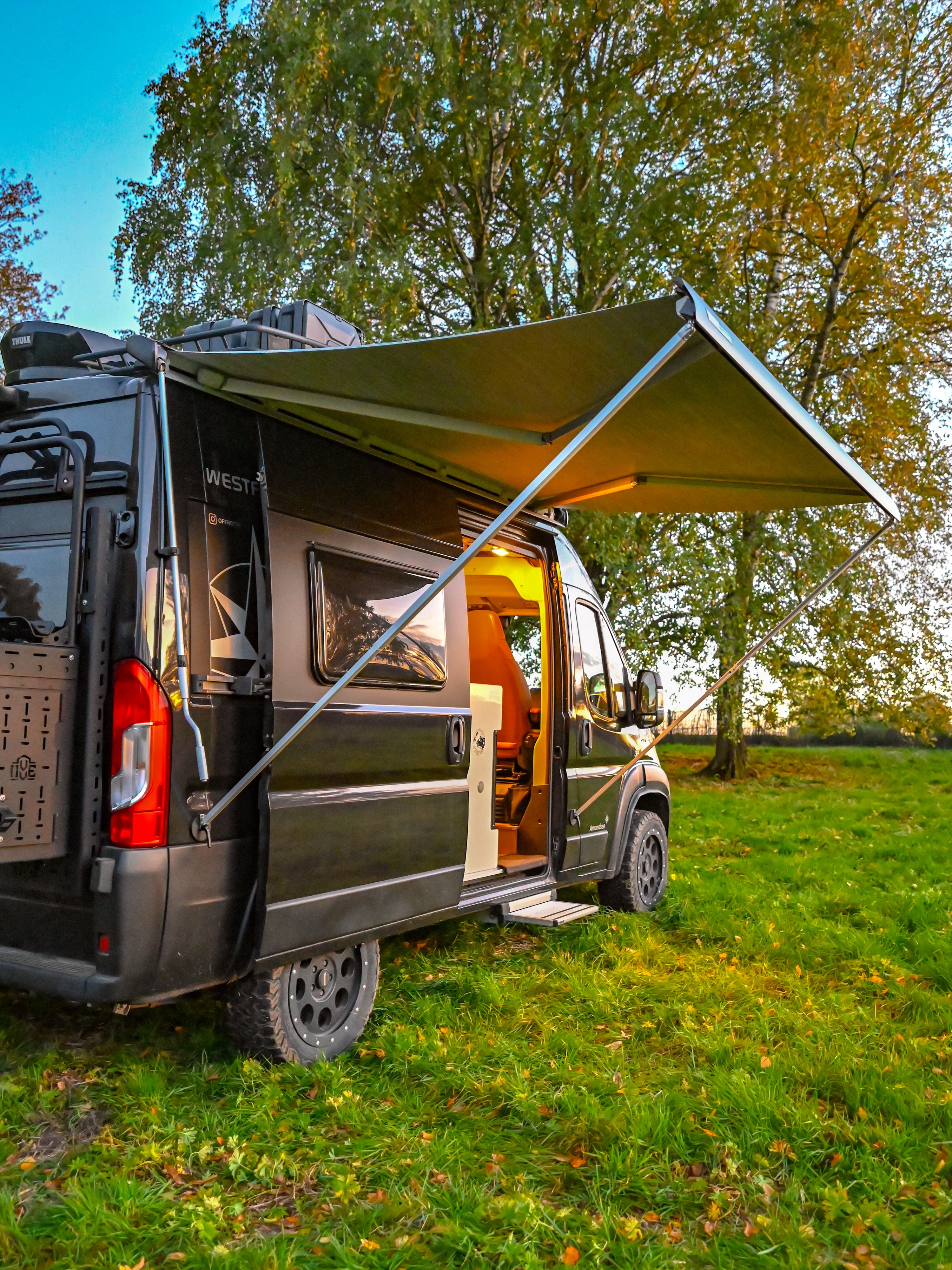

The Magnetic Awning Holder in action:

Watch this short demo video of the Magnetic Awning Holder and start enjoying the following benefits:

  • Tool-Free Installation - No tools are required for installation. Simply use the metal clamping lever to attach and detach the awning legs. Say goodbye to unreliable pegs and suction cups, and enjoy the peace of mind that comes with using magnets. This allows you to deploy the awning on any terrain: gravel, concrete, tarmac, rocky terrain.
  • No Damage to Vehicle - The magnetic holder uses strong rubberized magnets to attach directly to the van's chassis without the need for drilling, screwing, or using adhesives, thus preventing any potential damage to your vehicle's paint or surface.
  • Quick Setup - Forget about the time-consuming process of setting up traditional awning supports, drilling holes on the ground, or hammering nails. With the magnetic holder, your awning can be up and shading you in no time.
Embrace a life of style and convenience, whether on the road or at home with The Awning Legs Magnetic Holder – Offrotie – For all Van Awnings. More Vanlife, Better living!
